Services

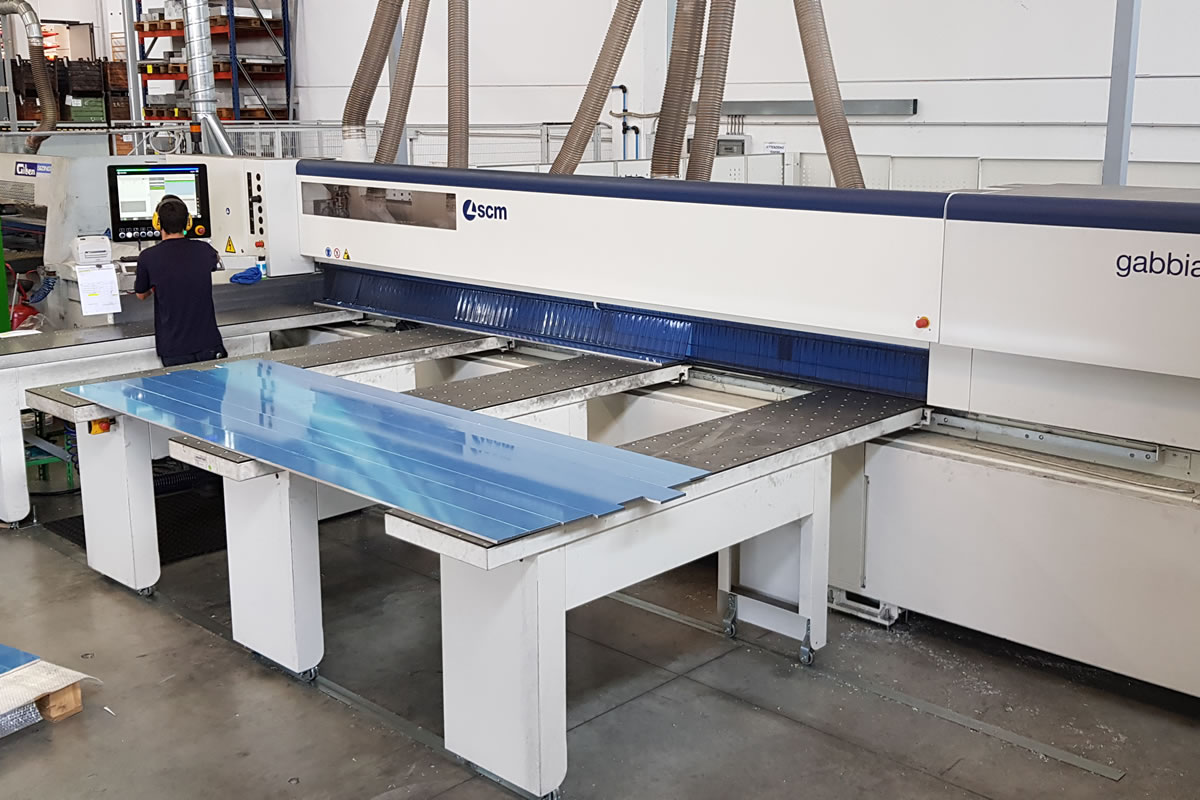

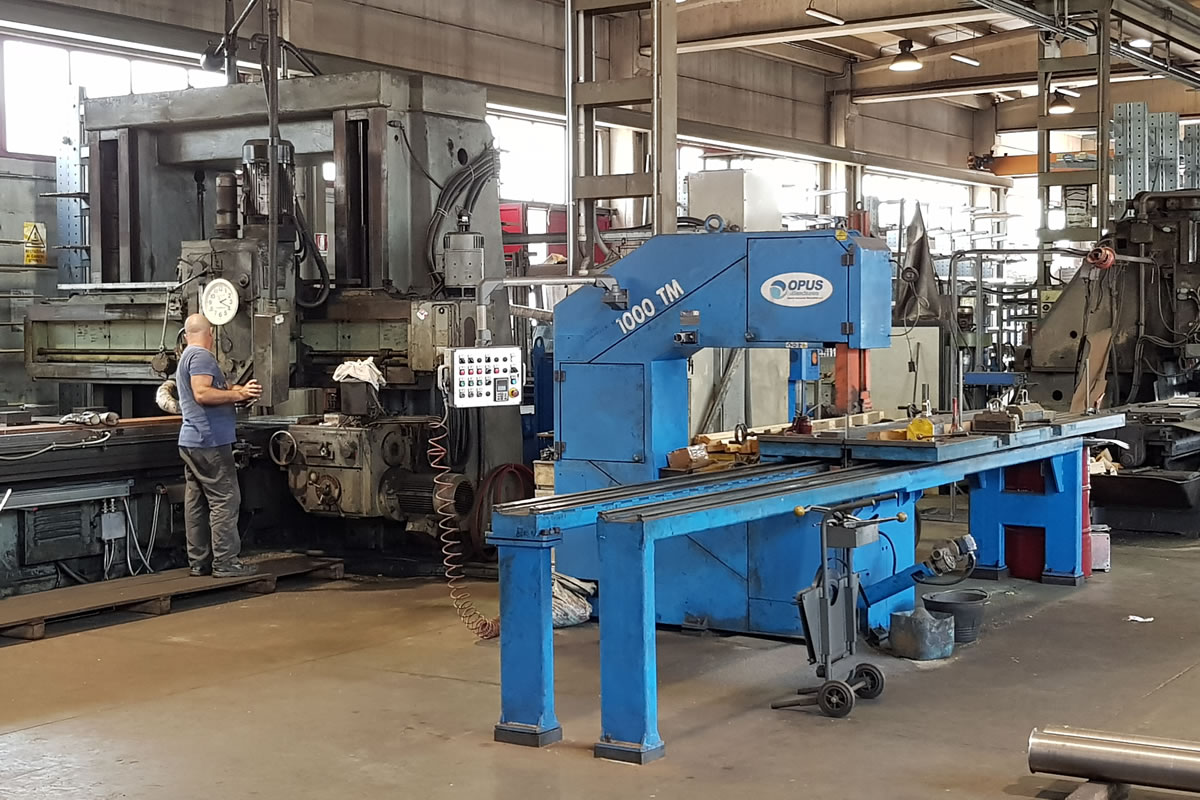

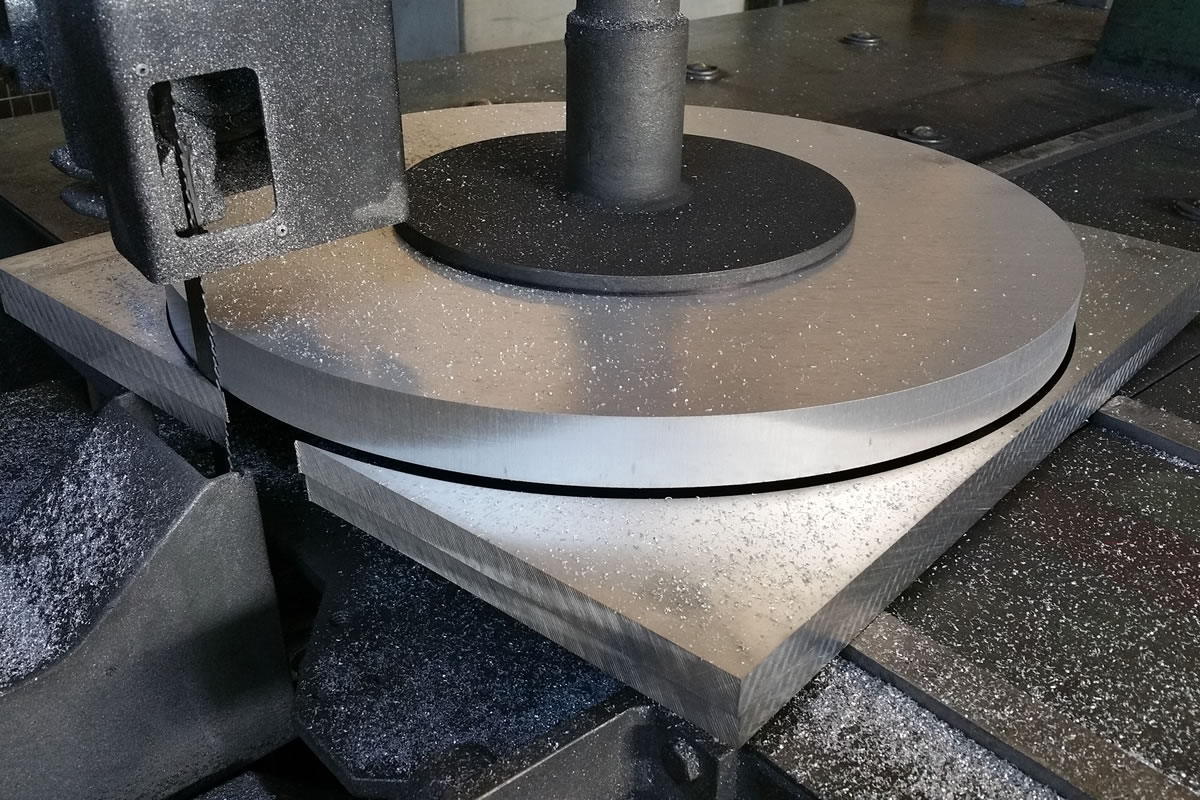

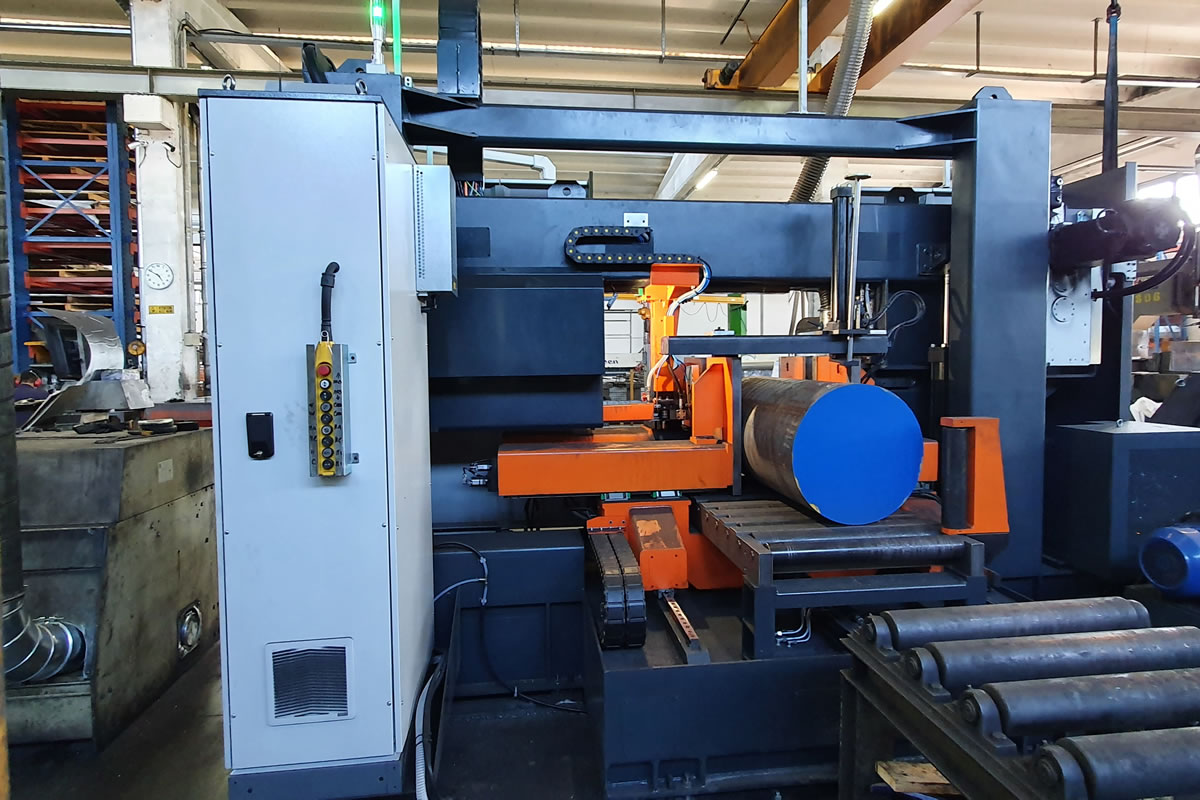

Thanks to efficient cutting equipment, present in all our locations, we are able to meet every need for cutting bars, slabs and blocks, both for small and medium and large series. This service is applicable to all material we trade.

For more information and to know the cutting tolerances that we can offer, you can consult the “Machine Park” section of this website and our technical catalogue of Services, in the section “Cutting to size and pre-processing service”

This service is offered only on Cast Iron (all alloys) and Aluminium bars (only alloys 2011; 2007 and 7075)

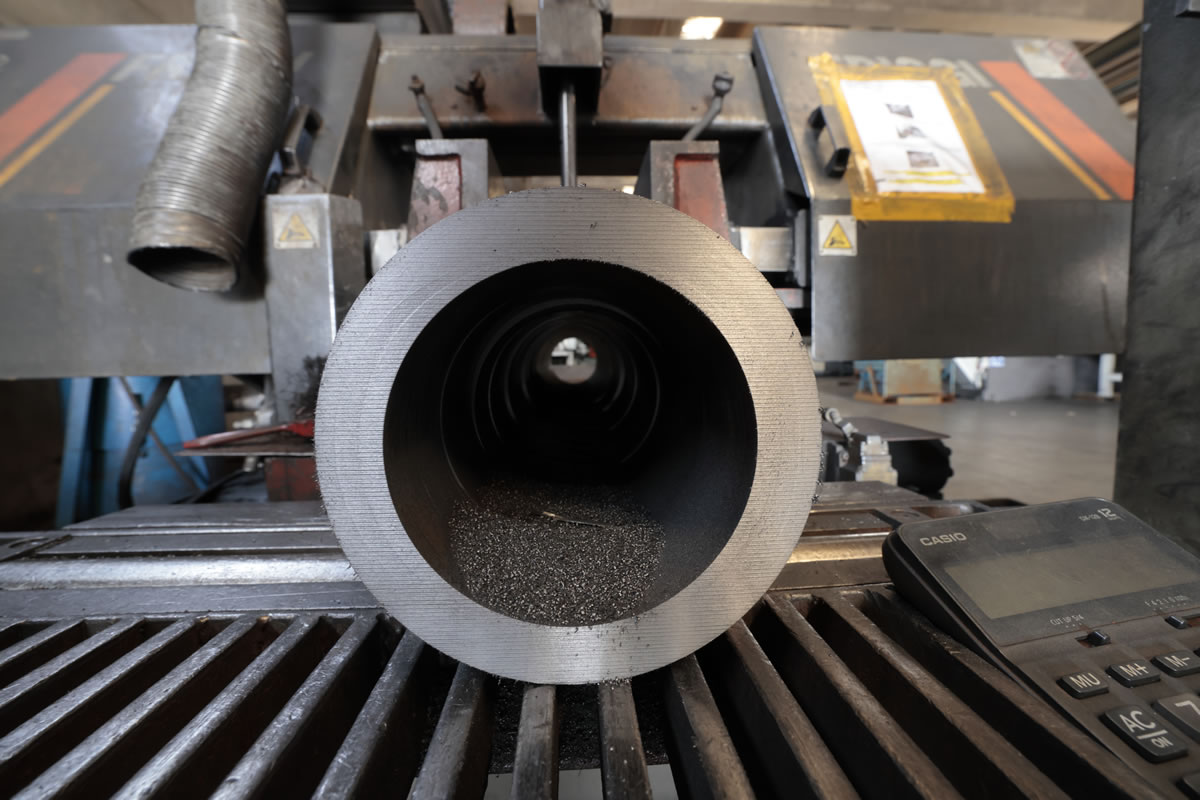

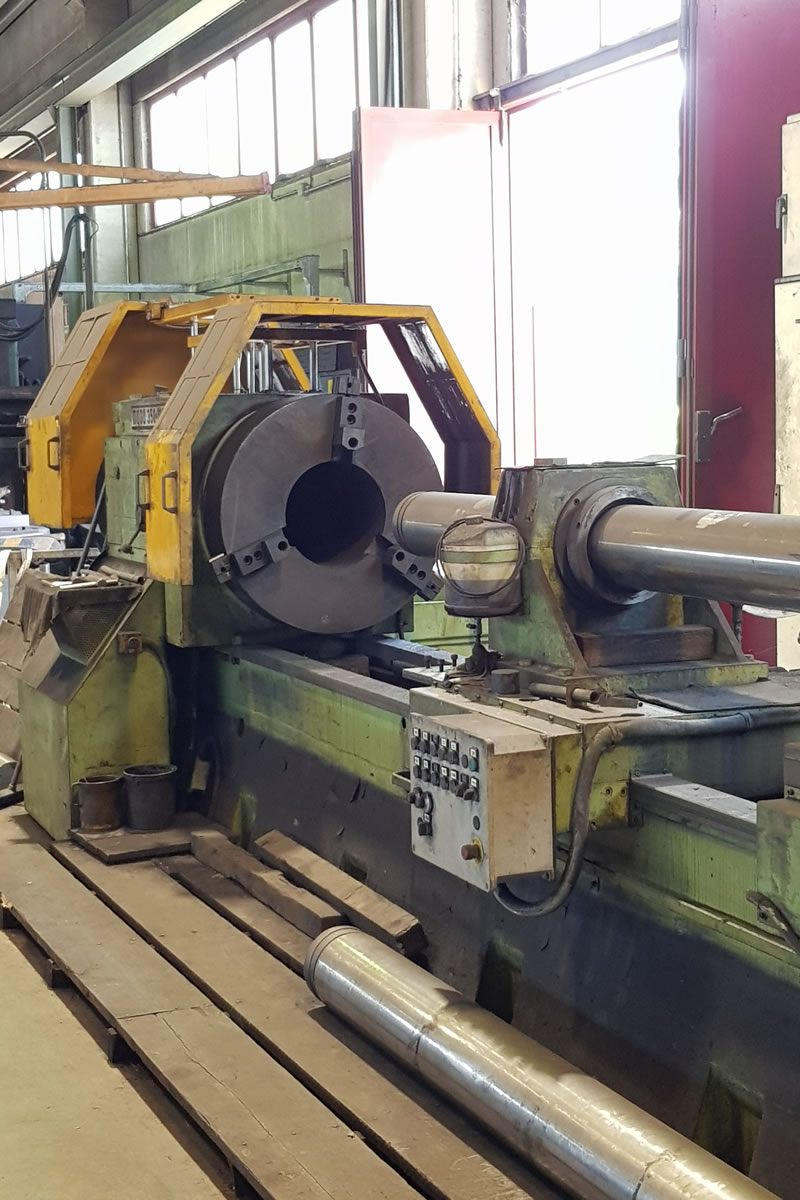

On the above mentioned materials, we can perform deep drilling machining, with the following characteristics:

• Maximum outer diameter: 430mm.
• Maximum internal diameter: 200mm.
• Maximum drilling length: 3’100mm.

The main advantages offered with the deep drilling service are:

• Production of tubes of length up to 3’100mm. from solid bars.
• Internal diameter obtained by mechanical processing and therefore concentric with respect to the external diameter.

More information about the external and internal sections and the maximum perforated length according to the required sections, can be found on the page “Service of cutting to size and pre-processing – (Page 10)” of the technical catalogue of “Services”.

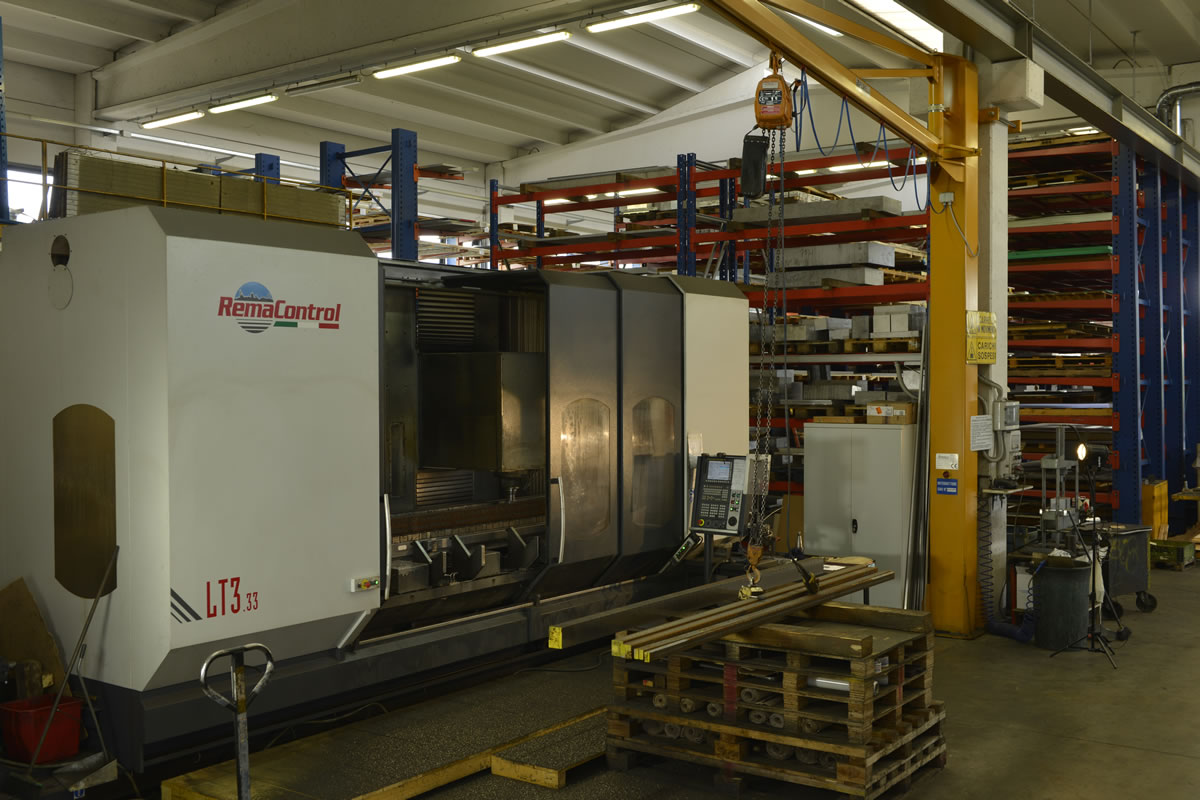

We can perform roughing and squaring of cast iron bars, with the following characteristics:

• Maximum milling length: 3300 mm.
• Maximum width/milling height: 300 mm
• Maximum dimensional tolerance achievable on the thickness of the bar: +/- 0.05 mm.
• Roughness: according to customer specifications, to be defined before the order.

The main advantages offered with the service of milling and roughing metals are:

• roughing bars carried out directly by the supplier at low cost, as performed on whole bars with specific equipment for such processing.
• Longer service life of the Customer’s tools, as the external crust more “abrasive” is previously removed with dedicated equipment.
• Greater ease and precision in the phase of placing pieces, as they are supplied with the sides already perfectly orthogonal with each other.
• Elimination of any defects potentially present in the “crust” of the cast iron.
• Reception of bars or cut pieces, ready for final processing.
• Reduction of scrap as the length of the milled bars can reach up to 3300 mm. (standard length 3000 -0/+200mm.).
• Less weight transported, resulting in savings on transport costs.

More information about the milling/roughing service can be found on the page “Service of cut to size and pre-processing – (Page 10)” of the technical catalog of “Services” and in the section “Machinery Park” of the website.

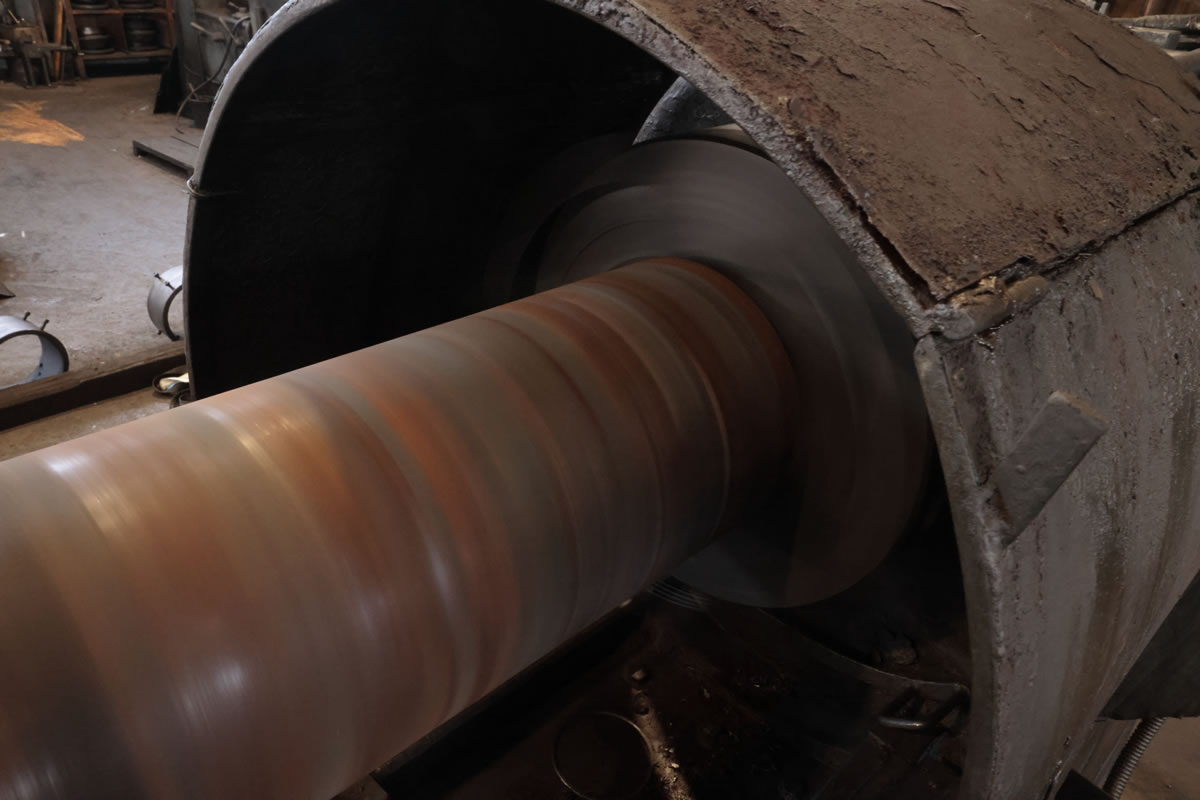

This service consists in the rapid removal of the working over metal. This service is valid only on round bars made of cast iron, We can offer this service with the following features:

• Maximum peelable section: 60mm.
• Maximum length of peelable bar: 3’100mm.
• Standard dimensional tolerance on diameter: h.9
• Maximum diameter tolerance: h.11
• Standard roughness offered: Rz.16

The main advantages offered with the peeling service of cast iron round bars are:

• Rapid and economical removal of the working excess metal.
• Possibility of “gripping” the peeled bars, with automatic pliers for machining in lathes with bar passage.
• Cost reduction in medium and large series turning operations.

In order to obtain the best possible ratio between quality, functionality and cost reduction of parts achievable by lost wax casting, in all steel, bronze and aluminium alloys (alloy A.356 only), our technical department is able to offer advice in the design of new details and in the transformation from cast to lost wax carpentry of parts already in production.

We offer technical advice also for the realization of shells and aluminum die casting. For more details see the section “Lost Wax Castings”, “Model Castings” and its technical catalog.

The company offers technical and commercial consultancy service for the production of Lamellar Cast Iron, Spheroidal Cast Iron and Special Cast Iron, making use of the collaboration of Italian foundries of primary importance (see the “Model Castings” section for more details).

Since 1997 Commerciale Fond has received from RINA the certification of conformity of its Quality Management System to ISO 9001, subsequently updated in ISO 9001:2008. We are thus able to guarantee our customers the total traceability of our products and the application of standardized procedures in all departments, both productive and commercial. (see the “Quality” page for more details).
